Log evaluations

With HAM Atlas you can show different evaluations on the maps.

On the left side of the evaluation window you first select the Logbook . It can be an ADIF, DBF or CSV file, in the simplest case a HAM OFFICE log file. In the latter case, specify where the HAM OFFICE program is located in the program options.

The display can also be restricted to Band , Mode or Date Range on the left-hand side.

Then you determine the type of evaluation and press the "Start" button.

The circles shown on the map are interactive . If you press it, it is displayed on which bands and in which modes there are QSOs for the DXCC or the Locator. The QSO list on the left is also updated.

While an evaluation is being displayed, all display types of the map can be changed and the map can be zoomed.

The current map section can be printed or saved as an image file.

Station evaluation

Pic below:Display of the QSOs on the map.

station evaluation
(Zoom pic)

Pic below:Show a single entry


(Zoom pic)

DXCC evaluation

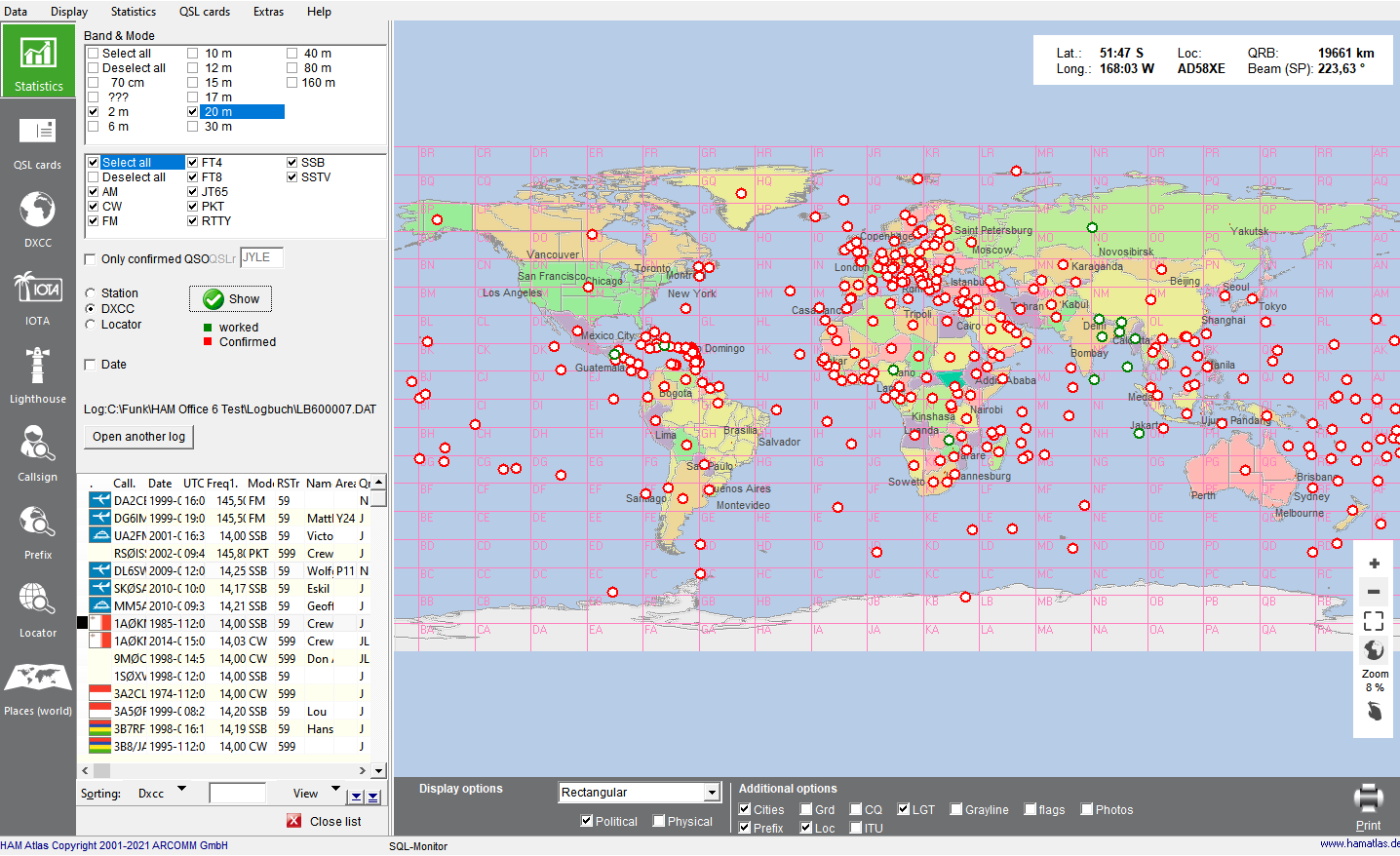

Pic below:Display of the DXCC on the map.

DXCC evaluations
(Zoom pic)

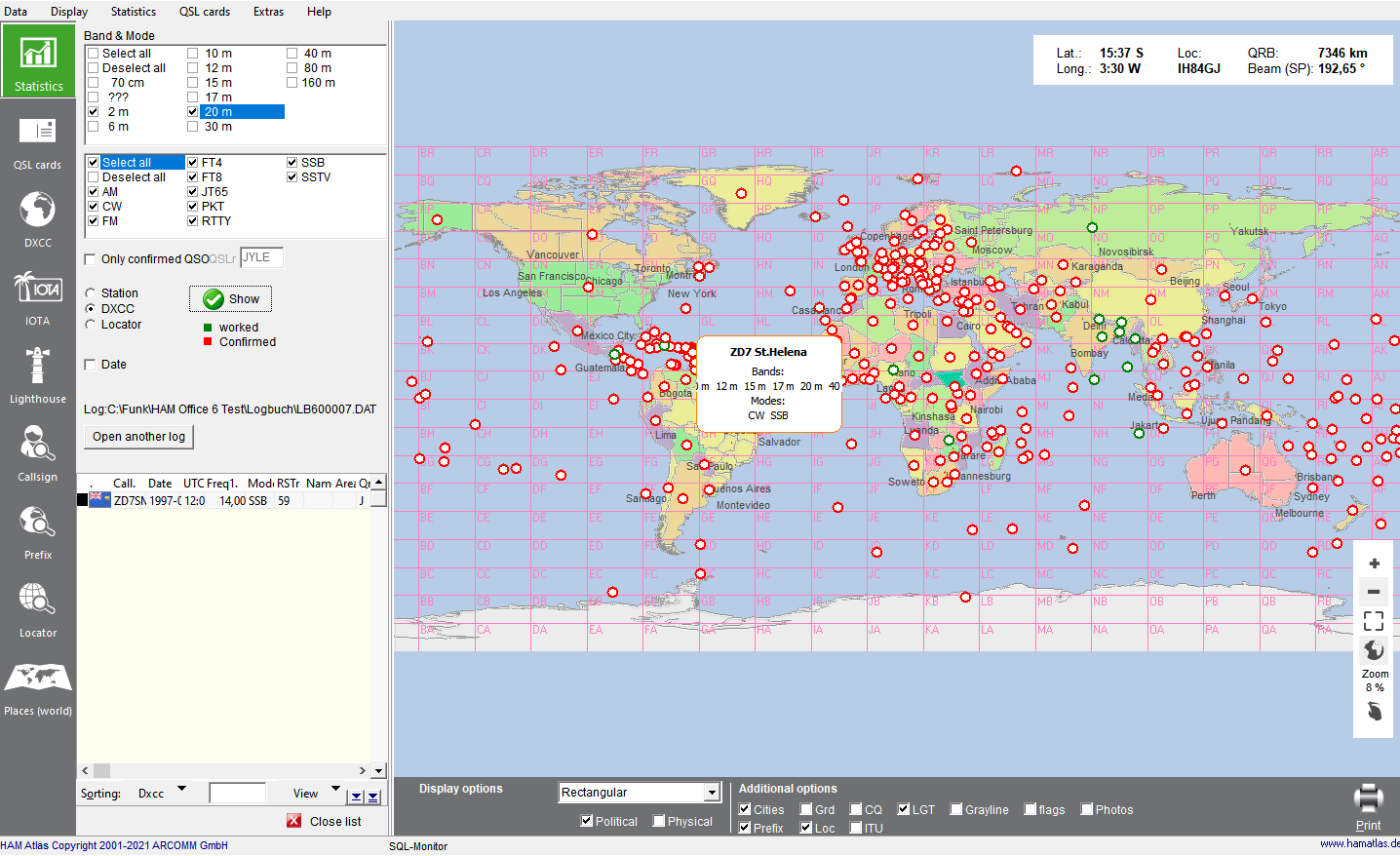

Pic below:Show a single entry


(Zoom pic)

Locator evaluation

Pic below:Display of the Locator on the Europe map.

Locator evaluation
(Zoom pic)

Pic below:Display of the Locator on the World map.


(Zoom pic)
